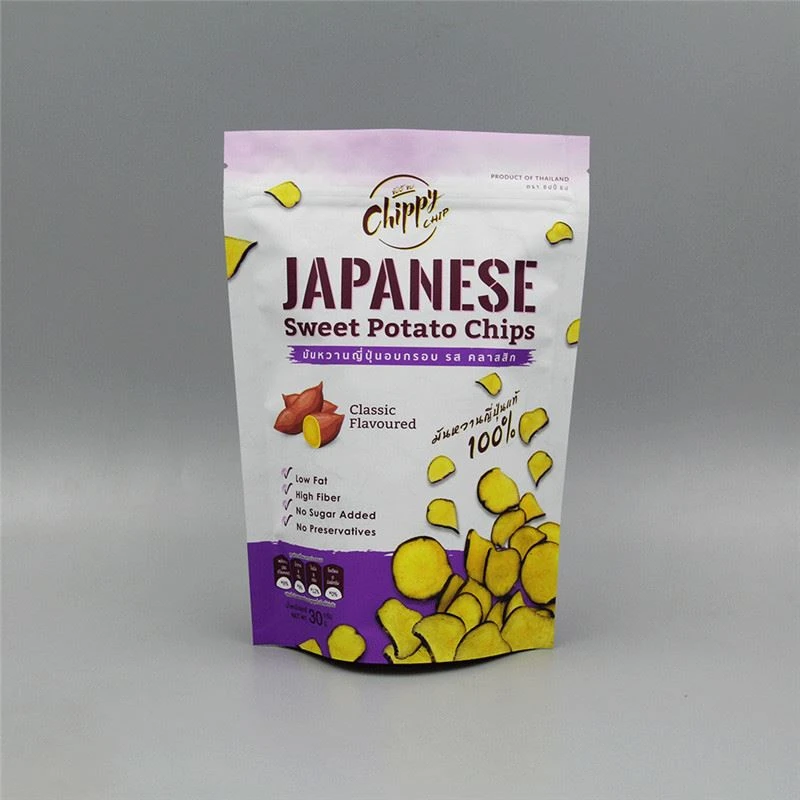

Potato Chips Snack Food Pouch
Original plaintain Potato Chips Snack Food Pouch with private label Premium toasted coconut crunchy organic chips mylar pouch Japanese sweet potato chips classic flavoured dried snack food bag We are OEM &ODM manufacturer,we have been specialized in paper and plastic packaging for more than...
- Product Introduction
Material Structure and Barrier Specs
Standard Laminate Structures
| Item | Structure A: High-barrier foil | Structure B: Medium-barrier metallized | |
| Outer layer | MBOPP 20–30 μm (matte side) / PET 12 μm | PET 12 μm | |
| Middle layer | Aluminum foil 7–9 μm | VMPET 12 μm (vacuum metallized) | |
| Inner seal layer | Food-grade LDPE 60–80 μm | Food-grade LDPE 70–90 μm | |
| Total thickness | 100–120 μm (customizable) | 100–120 μm (customizable) | |
| Light blocking | Blocks all light (100%) | Blocks some light; needs UV-resistant coating/ink | |
| Shelf-life target we recommend | 9–12 months (with nitrogen flush) | 6–9 months | |
| Works best for | Long shelf life, nitrogen flush, high-fat products | Regular shelf life, windowed packs, or cost-sensitive projects | |
Barrier and Migration Specs
| Spec | Structure A (foil) | Structure B (metallized) | Test condition | Test method |
| Oxygen transmission rate (OTR) | ≤ 0.05 cm³/(m²·24h·0.1MPa) | 0.5–2.0 cm³/(m²·24h·0.1MPa) | 23°C, 0% RH | ASTM D3985 |
| Water vapor transmission rate (WVTR) | ≤ 0.01 g/(m²·24h) | 0.3–1.0 g/(m²·24h) | 38°C, 90% RH | ASTM F1249 |
| Total solvent residue | ≤ 5 mg/m²; no benzene series detected | ≤ 5 mg/m²; no benzene series detected | After curing is complete | GB/T 10004 / gas chromatography |
| Odor rating | ≤ Grade 2 (our internal 5-point scale) | ≤ Grade 2 (our internal 5-point scale) | Sniff test after opening at room temp | In-house method |
| Heads up: the table above shows typical lab values. They are not guaranteed values for Potato Chips Snack Food Pouch. OTR/WVTR go up when it's hot and humid. Every batch shipment comes with a COA. You can ask for third-party retesting. | ||||
Process Advantages
| Issue | Risk | Packaging control |
| Moisture | Finished product moisture is usually ≤ 2.0%. If it takes in moisture, it goes soft and loses crunch. | Low-WVTR structure, nitrogen flush, warehouse RH ≤ 55%; desiccant optional for large packs |
| Oxygen | Oil content is 30–40%. Oxidation causes rancidity and off-flavors. | High-barrier OTR structure, nitrogen flush to residual oxygen ≤ 2% (target ≤ 1%), foil blocks light |
| Light | UV and visible light speed up oil oxidation and color fade. | Foil layer blocks all light; VMPET structure needs UV-resistant coating/ink |
| Off-odor | Ink and adhesive odors can migrate, and chips pick up odors. | Low-odor inks and adhesives, controlled curing (45–50°C, 48–72 h), odor rating ≤ Grade 2 at shipping |
Stand-up pouch: oval or round bottom. It stands up for shelf display and runs on manual or automatic filling lines. Standard options include a zipper and tear notch.
Flat-bottom / eight-side-seal pouch: square bottom. Stacks and displays well in boxes and on pallets. Good for family packs and larger weights.
Side-gusset pouch: gussets on both sides. Holds a lot, folds flat when empty. Good for large nitrogen-flushed packs and saves storage and freight.
Three-side-seal flat pouch: simple and lower cost. Good for small sizes and sample packs. Also works as a flat pouch on horizontal flow-wrap machines.
Other styles made to your drawing: back-seal pouches, custom die-cut pouches, stand-up pouches with windows, and more.

Surface Finishes and Features
Surface finishes: matte (standard for this product), gloss, spot matte/gloss, soft-touch film, UV-resistant coating, scratch-resistant coating, anti-static treatment.
Clear windows:
Potato Chips Snack Food Pouch can do square, round, and custom window shapes. You tell us where you want them.
Window material: clear PET/OPP film, or spot foil removal.
Keep in mind: windows cut down barrier and light blocking. Keep window area to 30% of the front panel or less. If you need high barrier and long shelf life, we don't recommend windows.
Features:
Zippers: standard, double-track, child-resistant (optional).
Tear: laser tear line or physical tear notch.
Hang holes: round, butterfly, Euro-style.
Other: rounded corners, one-way degassing valve, nitrogen-flush port, tamper-evident tear strip.
Printing:
Rotogravure (8–10 colors, standard).
Digital (no plates; good for many SKUs and small runs).
Spot cold foil and spot UV (quoted per order).
More product styles



Sampling Process
Artwork review and structure sign-off: 1–2 business days.
Digital proof or electronic proof approval: 2–3 business days.
Physical samples: gravure needs plates, 7–10 business days; digital samples 3–5 business days.
Both sides sign off and seal a sample pouch. That sealed pouch is the acceptance standard.
We run bulk against the sealed sample. Same-batch color difference ΔE ≤ 2.0; batch-to-batch ΔE ≤ 2.5.
Equipment and Capacity
Fast rotogravure machines: 8–10 colors, the web width is 1000–1300 mm, automatic registration by ±0.1 mm.
Lamination: dry and solvent-free machines are running together, automatic control of the tension. Controlling of the curing room temperature and humidity is utilized.
Bag-making: stands, flat-bottom, side gussets, and three-side seal type machines are present in addition to zipper and customized die-cutting machines.
Finishing: high-speed slitters, rewinding and inspecting machines are used for inline rejection and marking of defects.
Lab: OTR/WVTR testers, heat-seal tester, electronic tensile tester, gas chromatograph (solvent residue), seal integrity tester, COF tester, colorimeter, thickness gauge.
Batch control: we keep retain samples for 12–24 months per batch. Lot numbers trace back to raw material lot, machine, and operator.


About Us
We are Kazuo Beyin Paper and Plastic Packing Co., Ltd (formerly Xiongxian Juren Paper & Plastic Packaging Co., Ltd.). We started in 1998. We have 20+ years in paper and plastic packaging. We do OEM and ODM. We can make to your sample, make to your artwork, and help develop structures.
Compliance: food-grade materials. FDA and SGS certified. We can provide migration testing and related declaration documents for your market.
Factory audits: on-site or video audits are fine. We can work with third-party inspections.
Approval of the first article: we will provide a sample for approval before starting production. Production will begin only after getting the written approval from you.
Claims in relation to the quality of the products: you should provide claims with 30 days after receipt of the production. In your claims, you are required to specify the lot number of the product along with the pictures of it and the results of our laboratory tests in case the fault is ours. In such a case, we will compensate for losses.
Stability of supply: we have backup providers of film, foil, glue, and ink. Additionally, we have safety stock for products with common specifications.
Confidentiality of information: we can sign an NDA in relation to designs, structure, and prices.
Conditions of trade: EXW/FOB/CIF. Prices will be provided in relation to the destination port.
Export packing: internal PE bag plus five-layer corrugated box plus pallet packed into stretch wrapping. We provide packing list and packing plan for pallets.
What to Include in an RFQ
Bag type and dimensions: Width × Height × Bottom Gusset / Side Gusset (or provide a physical sample).
Details about the material and barrier are required, or let us know the shelf life, and whether the product goes through a nitrogen flushing process.
Information about thickness and finish is also needed (matte/gloss/window or not).
Print sample: total color count, file format, gravure color or digital printing.
Features that we need to know: zipper, tear friction, hole for hanging, or venting valve.
Quantity: unit count of the first order as well as annual predictions.
Packing details: number of units in boxes, palletized or not.
Hours required for delivery as well as destination port; trade arrangements (EXW / FOB / CIF).
In case of roll film order: details of the equipment, film size, roll size (outer diameter), diameter of the core, position of the eye, and the way of rolling.
How We Work
Kazuo Beyin Paper and Plastic Packing Co., Ltd produces Potato Chips Snack Food Pouch right from selection of materials to production of the larger quantity. The process involves: confirming the specifications → quoting and sampling → approving the sample → producing the initial batch → and shipping along with paperwork.
We offer free structure consulting and sample pouches (freight collect). You can start with a small trial order and then move to large gravure runs. That keeps your validation cost and inventory risk down.
